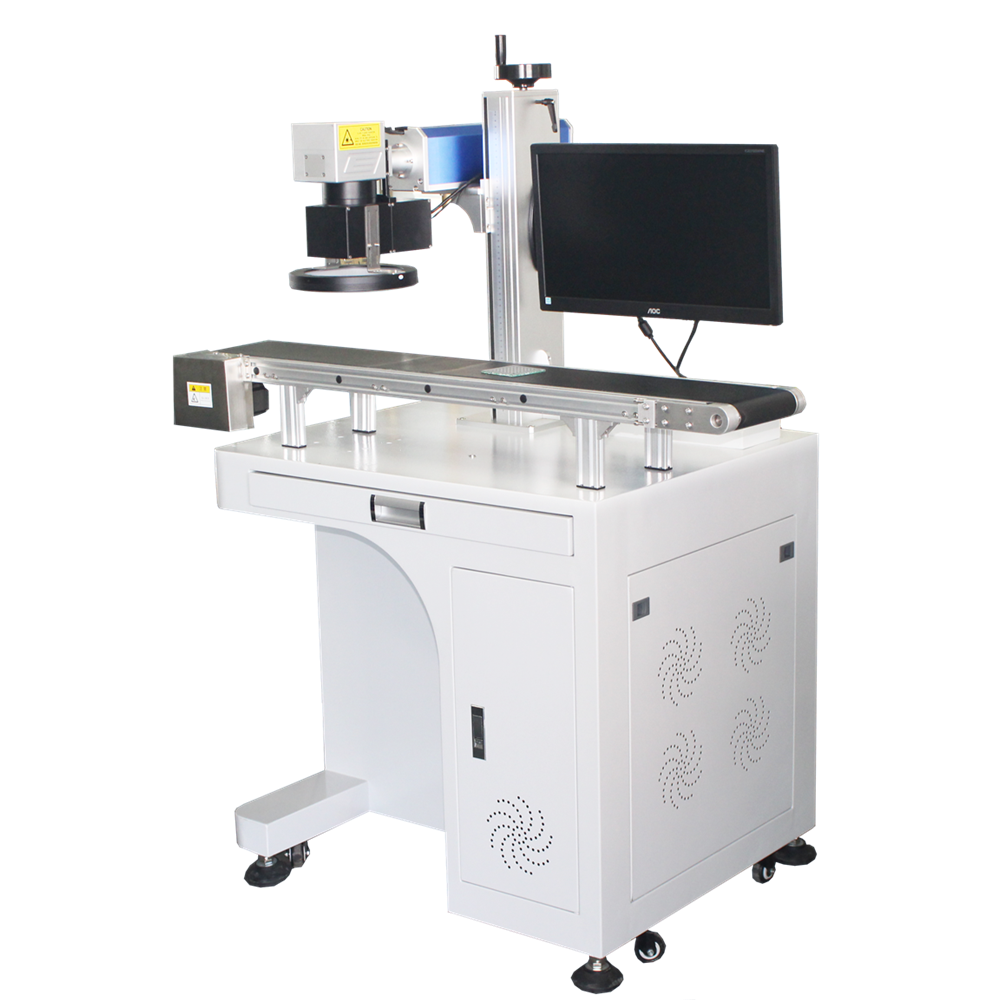

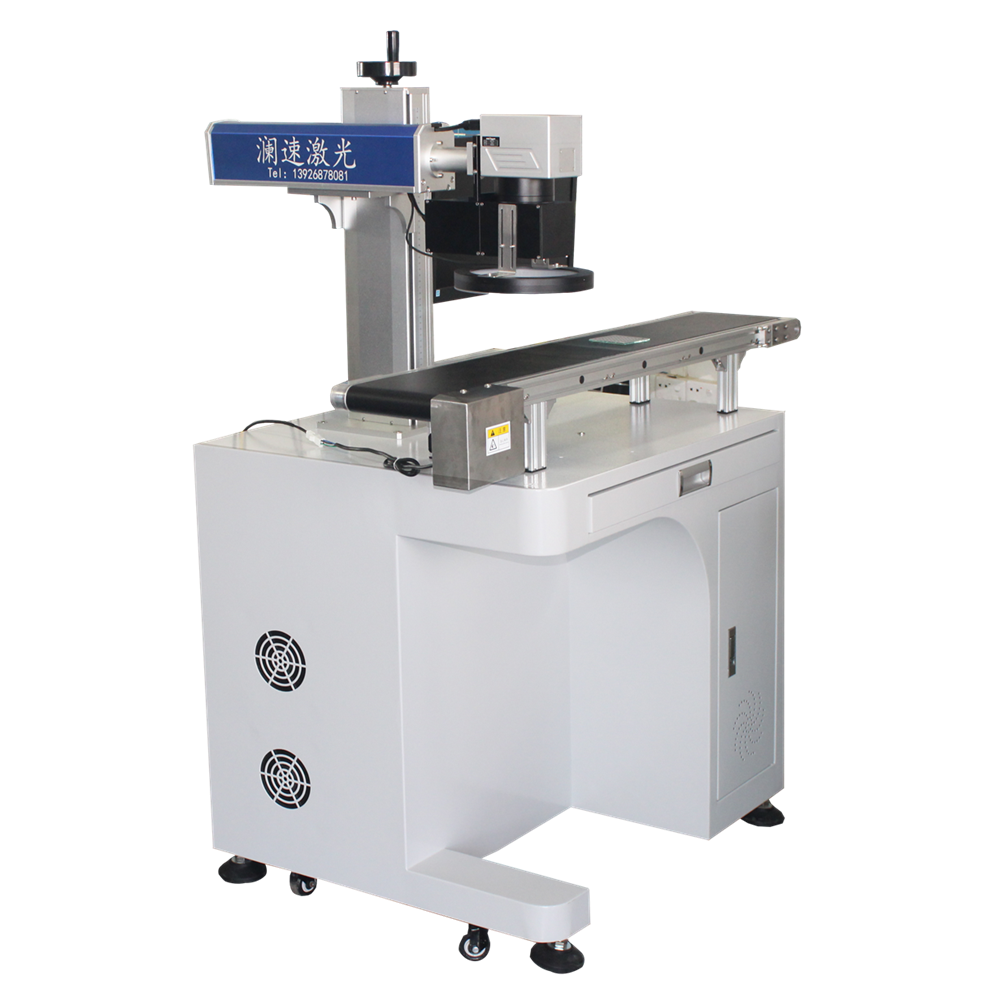

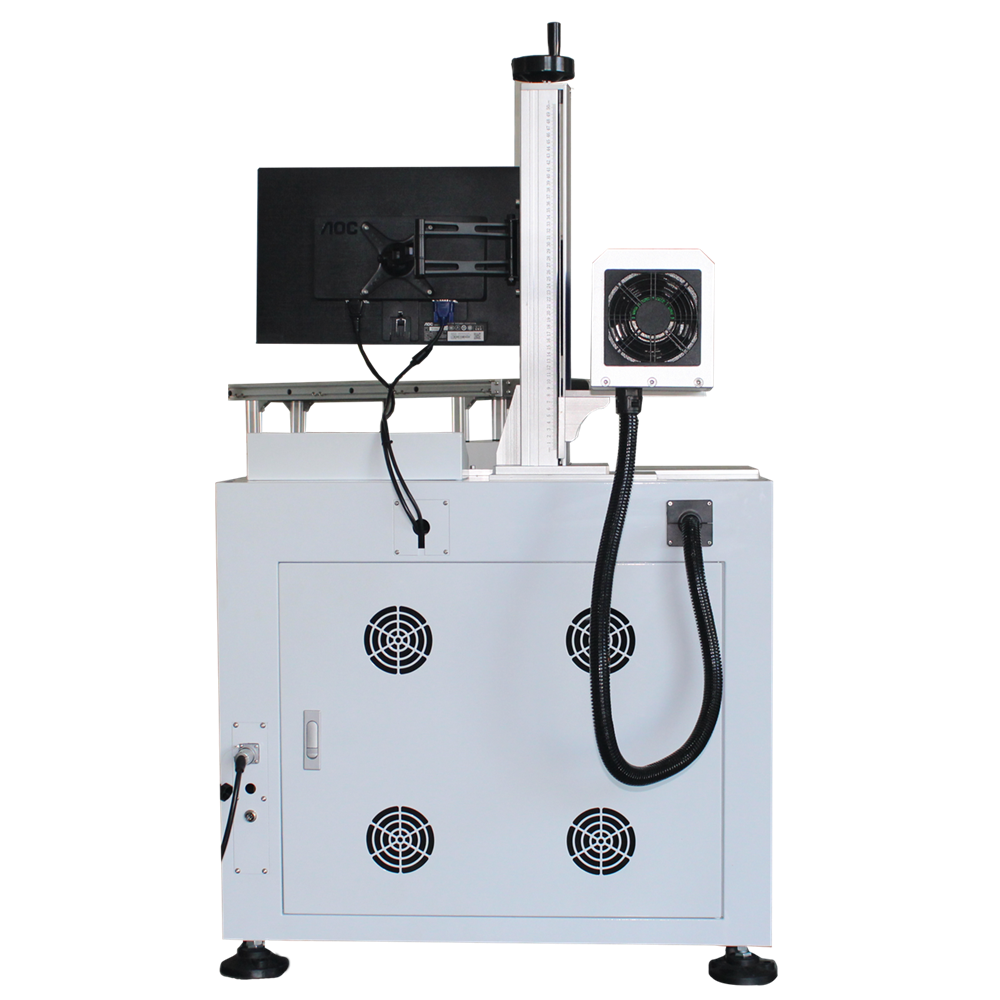

CCD Visual positioning laser marking machine

1. Improve production efficiency and achieve rapid positioning. You can mark multiple products at one time, and you can also automatically load the assembly line, and then perform visual positioning and marking after positioning.
2. High-precision positioning and marking. The combination of the marking machine and CCD vision can achieve high-precision positioning and marking at any angle, any number, and any position.
3. Improve production efficiency. By cooperating with components such as vibrating plate, assembly line, XY platform, etc., unmanned and automated production can be realized, which greatly improves product quality.

National Service Hotline
0769-8122-1176

2019.06.17
views：

CCD Visual positioning laser marking machine Descrption


CCD vision positioning laser marking machine is mainly aimed at the problems of difficult feeding, poor positioning and slow speed caused by the difficulty of fixture design and manufacturing in batch irregular marking. Way to resolve. The system provides random feeding, accurate positioning and marking, which greatly improves the marking efficiency.





Applicable industry


It is suitable for occasions with large workload, difficult positioning of feeding, diversity and complexity of workpieces.

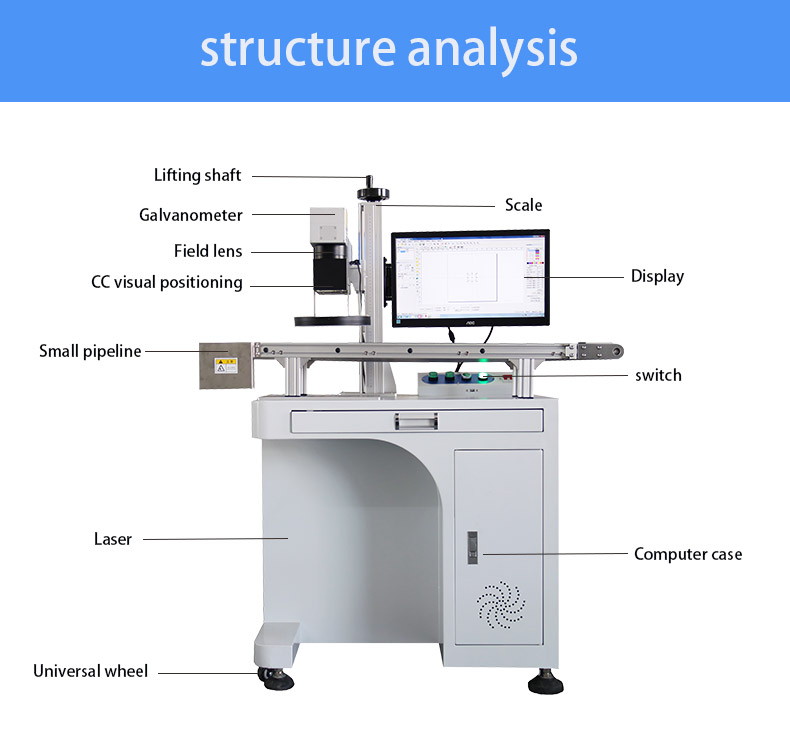

Camera system


Single CCD camera positioning system


Dual CCD camera positioning system


Coaxial CCD camera positioning system



    Introduction of CD camera system


1.3 million and 5 million camera pixels (optional)


Camera response time 200 ms


Camera accuracy 5μ


Camera marking method: archive the workpiece surface to be lasered
